DAR- SOLAR photovoltaic glass AR film coating production line

Category：

Product

+86-198 7884 1913

dalivacuum@aliyun.com

Inquiry Now

DESCRIPTION

Product info

lt is a type of production line used to manufacture photovoltaic glass with anti-reflective(AR)coating for use in solar panels.The ARcoating reduces the amount of light reflected off the surface of the glass, which allows more light to pass through andincreases the efficiency of the solar panel.The sOLAR photovoltaic gl.ass ARfilm coating production line typically consists ofseveral stages, including glass cleaning,AR coating application, drying, and curing.The coating is usually applied using aprocess called magnetron sputtering, which involves the deposition of thin films of material onto the glass surface using aplasma process.SOLAR photovoltaic glass ARfilm coating production lines are important in the manufacture of
high-efficiency solar panels, and they are an important component of the renewable energy industry.
The technology behind SOLAR photovoltaic glass ARfilm coating production lines typically involves the use of vacuum depositiontechniques,such as magnetron sputtering or ion plating, to apply a thin film of anti-reflective coating onto the surface of the glassSOLARphotovoltaic glass with ARfilm coating provides advantages such as increased efficiency, improved durability, easy
maintenance, enhanced aesthetics, and greater energy production, making it a popular choice for use in solar panels and animportant component in the development of efficient, cost-effective renewable energy systems.

Configuration

Example : DAR-1215

Glass specifications	Maximum size: 1100x2000mm, minimum size: 300x300mm, thickness: 2-6mm(conventional 3.2mm).Varieties: solar embossed glass, float glass.
Coating equipment specifications	Total length: 19m. Preheating section: 3.75m.Coating section: 4.0m. Main dryingpassage: 11.25m. Width: 2.35m. Height: 900150mm adjustable. Transmission linespeed: adjustable from 0 to 8m/min.
Temperature requirements	Infrared heating tube heating method. Preheating section temperature: adjustable atroom temperature -150℃.High temperature section temperature: adjustable fromnormal temperature to 250℃. Furnace temperature steady-state error: ≤±2.5℃.

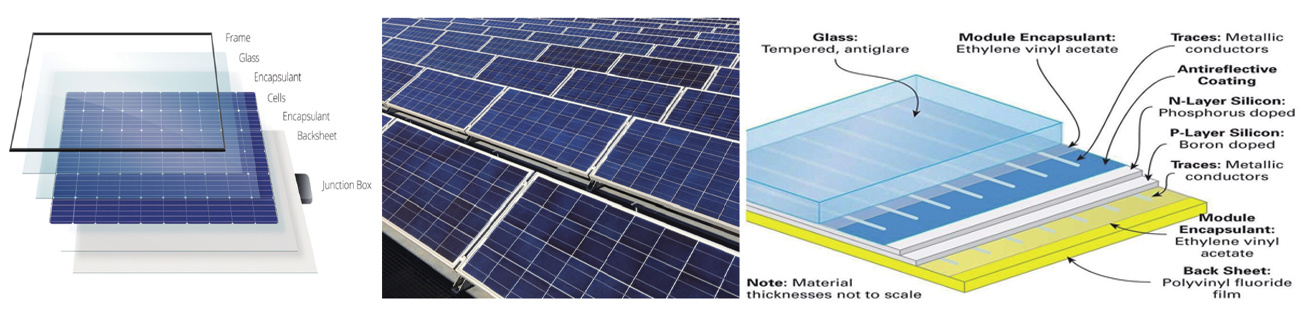

Application
